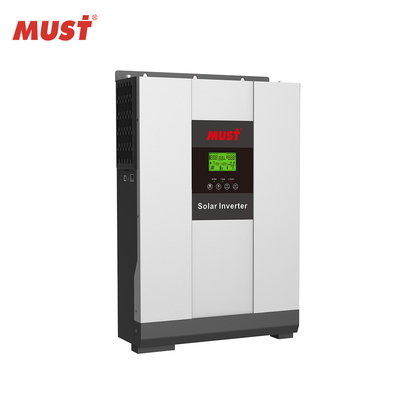

Must PH1800 Plus Series High Frequency On/Off Grid Hybrid Solar Inverter 2kw 3kw 4kw 5kw 5.5kw solar inverter
hybrid solar inverter
high frequency hybrid solar inverter
must solar inverter
| MODEL | PH18-2024 Plus | PH18-3024 Plus | PH18-3048 Plus | PH18-4048 Plus | PH18-5048 Plus | PH18-5548 Plus |
| Nominal Battery System Voltage | 24VDC | 48VDC | ||||
| INVERTER OUTPUT | ||||||
| Rated Power | 2000W | 3000W | 3000W | 4000W | 5000W | 5500W |
| Surge Power | 4000W | 6000W | 6000W | 8000W | 10000W | 11000W |
| Waveform | Pure Sine Wave | |||||
| AC Voltage Regulation (Batt.Mode) | 220VAC-240VAC(setting) | |||||
| Electric Current | 8.7A | 13A | 17.4A | 21.7A | 23.9A | |
| Inverter Efficiency(Peak) | 93% | |||||
| Transfer Time | 10ms(For for Personal Computers) 20ms( For Other Home Appliance) | |||||
| AC INPUT | ||||||
| Voltage | 230VAC | |||||
| Selectable Voltage Range | 170-280VAC(For Personal Computers),90-280VAC(For Home Appliances),184-253VAC(VDE4105) | |||||
| Frequency Range | 50Hz/60Hz (Auto Sensing) | |||||
| BATTERY | ||||||
| Normal Voltage | 24VDC | 48VDC | ||||
| Floating Charge Voltage | 27.4VDC | 54.8VDC | ||||
| Overcharge Protection | 31VDC | 60VDC | ||||
| SOLAR CHARGER & AC CHARGER | ||||||
| Maximum PV Array Open Circuit Voltage | 145VDC | |||||
| PV Array MPPT Voltage Range | 30-130VDC | 64-130VDC | ||||
| Standby Power Consumption | 2W | |||||
| PV Array MPPT Voltage Range | 2000W | 4000W | ||||
| Maximum PV Array | 80A | |||||
| Maximum Efficiency | 98% | |||||
| Maximum AC Charge Current | 60A | |||||
| Maximum Charge Current | 140A | |||||
| MECHANICAL SPECIFICATIONS | ||||||
| Machine Dimensions (W*H*D) | 272*355*100 mm | 297.5*468*125 mm | ||||
| Net Weight(Kg) | 7.4 | 14 | ||||
| Package Dimensions(W*H*D) | 485*393*251 | 638*395*241 | ||||
| Gross Weight(Kg) | 9.5 | 16.4 | ||||
| OTHER | ||||||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |||||
| Operating Temperature | 0°C-55°C | |||||
| Storage Temperature | -15°C-60°C | |||||
| *Products specifications are subject to change without further notice | ||||||
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Must-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Interested? Why not send our "inquiry" for more details?
