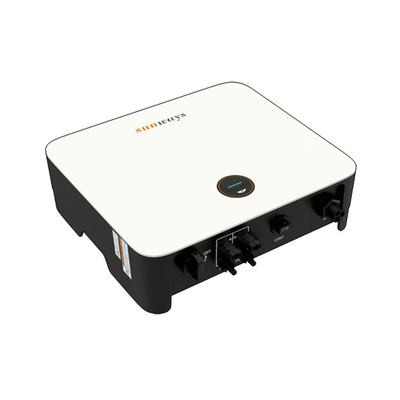

Micro Grid Tie Solar Inverter 5000w 6000w Inverter For Solar Panel 540*400*175mm

1 Set
MOQ
$400.00(1 - 49 sets) $380.00(50 - 179 sets) $360.00(>=180 sets)
preço
Micro Grid Tie Solar Inverter 5000w 6000w Inverter For Solar Panel 540*400*175mm
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Model Number: STS-5KTL
Input Voltage: 200V-1000V
Output Voltage: 3L/N/PE, 230/400V
Output Current: 10A - 39A
Output Frequency: 50/60HZ
Output Type: Triple
Size: 540*400*175mm
Type: DC/AC Inverters, Grid tied solar inverter
Inverter Efficiency: 99.5%
Certificate: ISO,CE, TUV,CQC, SAA
Warranty: 5 Years
Weight: 25kg
Product name: Grid tie solar micro inverter 5000w 6000w inverter for solar panel
Output waveform: Pure Sine Wave Output Inverter
Protection Level: IP65
Frequency: 50/60 HZ
MPPT efficiency: 99.99%
Operating Temperature: -30~60
MPPT Voltage Range: 200-950V
AC connection: Three phase
Inverter for solar pannel: Available
Informação básica
Certificação: ISO,CE, TUV,CQC, SAA
Model Number: STS-5KTL
Condições de Pagamento e Envio
Packaging Details: carton box , wooden box and wooden pallet
Descrição de produto
Product Description

What is a grid-tied system?

Grid-tied solar systems are connected to the utility grid via a grid-tie inverter. The grid-tie inverter enables a two-way transfer of power between the home’s solar-powered system and the grid.

If needed, the home can draw energy from the grid at times (such as on cloudy days or at night) when solar panels are not producing at full efficiency. Likewise, if more energy than is needed is generated by the panels of one home, that excess energy will be fed into the grid for use elsewhere.

Structure

The system consists of photovoltaic array, grid-connected inverter, grid, and load.
How it works
1. The photovoltaic array (PV) on the solar panels generating DC electricity
2. The DC electricity is fed into a Sunways solar inverter that converts it to AC electricity. (220-240V, 50Hz/60Hz)
3. The AC electricity is used to power appliances in your home.
4. Excess electricity is fed back into the public grid.
Specification
Product details
Certifications
Project
Spain
Project : Almendrico, Pulpi, Province Almeria, Spain

Item:332 Sunways Solar Inverter NT 5000, 1.3 MW
Germany
Project: EDEKA Südwest in Rheinstetten, Germany
Item: 1,710 solar modules and 30 solar inverters from Sunways totally deliver power of 393.3 kWp.
 Germany
Project: Solar Park in Haidlfing, Germany

Item: 355 sets of Sunways PT inverters totally deliver power of 11.7 MW, Up to 10% higher yields than simulation

Product packaging
Support service
Monitor

WEB

* Flexibility: Design your own page according to your preference (your zone, your rule)

* User Friendly: Animation window guides everywhere，easy for using.

* Productivity: Plant/Device/Report checking, diagnosing and management any time anywhere.

* Visualization: Super fancy main dashboard creates exciting visual effect.

APP

* Warranty Check

* Rich Reports Realtime/Day/Month/Year

* Alarm Management

* Whether Forecast

* Wi-Fi Configure

* Check & Manage your plant at anytime & anywhere

* One-click to share plant on social media
One stop solution
from solar panel to monitor
Overseas service
Overseas service
We' re happy to provide overseas services, Your satisfaction is our pursuit.

And now we has overses offices in the following places：
1. Germany
2.Spain (Barcelona)
3. Itlay....


FAQ
Product name: Grid tie solar micro inverter 5000w 6000w inverter for solar panel

Grid-tied inverter we have: we has single phase series for home use, smart 3phase series for commerical use, and industial 3phase type.

3.Solar inverter payment terms: T/T, L/C, Paypal, Western union all support Delivery time: Sample order 3 working days, Container order 10-20 working days. Flexible solar panel Minimum order quantity : 1 PC Guarantee period: 5 years OEM service: Support (Print logo on carton for free)
